Sewer - Access Covers - Paver Infill

Infill 2 Part Cover & Frame - Class C FAC1212C-2
Product Specifications
  • COVER (X): 1260
  • COVER (Y): 1350
  • COVER (Z): 72
  • FRAME (C): 1475
  • FRAME (D): 1330
  • FRAME (E): 85
  • OPENING (A): 1200
  • OPENING (B): 1260
-
Infill 2 Part Cover & Frame - Class C FAC36C-2
Product Specifications
  • COVER (X): 750
  • COVER (Y): 375
  • COVER (Z): 72
  • FRAME (C): 755
  • FRAME (D): 455
  • FRAME (E): 85
  • OPENING (A): 305
  • OPENING (B): 680
-
Infill 2 Part Cover & Frame - Class C FAC46C-2
Product Specifications
  • COVER (X): 750
  • COVER (Y): 530
  • COVER (Z): 72
  • FRAME (C): 755
  • FRAME (D): 610
  • FRAME (E): 85
  • OPENING (A): 460
  • OPENING (B): 680
-
Infill 2 Part Cover & Frame - Class C FAC47C-2
Product Specifications
  • COVER (X): 910
  • COVER (Y): 530
  • COVER (Z): 72
  • FRAME (C): 915
  • FRAME (D): 610
  • FRAME (E): 85
  • OPENING (A): 460
  • OPENING (B): 840
-

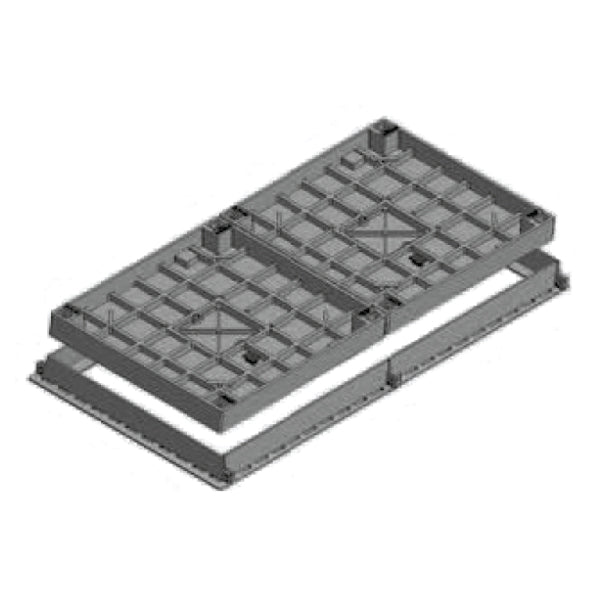

Infill 2 Part Cover & Frame - Class C FAC49C-2
Product Specifications
  • COVER (X): 1070
  • COVER (Y): 530
  • COVER (Z): 72
  • FRAME (C): 1065
  • FRAME (D): 610
  • FRAME (E): 85
  • OPENING (A): 460
  • OPENING (B): 1000
-
Infill 2 Part Cover & Frame - Class C FAC610C-2
Product Specifications
  • COVER (X): 1220
  • COVER (Y): 690
  • COVER (Z): 72
  • FRAME (C): 1215
  • FRAME (D): 760
  • FRAME (E): 85
  • OPENING (A): 610
  • OPENING (B): 1150
-
Infill 2 Part Cover & Frame - Class C FAC612C-2
Product Specifications
  • COVER (X): 1380
  • COVER (Y): 690
  • COVER (Z): 72
  • FRAME (C): 1375
  • FRAME (D): 760
  • FRAME (E): 85
  • OPENING (A): 610
  • OPENING (B): 1300
-
Infill 2 Part Cover & Frame - Class C FAC69C-2
Product Specifications
  • COVER (X): 1070
  • COVER (Y): 690
  • COVER (Z): 72
  • FRAME (C): 1065
  • FRAME (D): 760
  • FRAME (E): 85
  • OPENING (A): 610
  • OPENING (B): 1000
-
Infill 2 Part Cover & Frame - Class C FAC712C-2
Product Specifications
  • COVER (X): 1380
  • COVER (Y): 810
  • COVER (Z): 72
  • FRAME (C): 1375
  • FRAME (D): 910
  • FRAME (E): 85
  • OPENING (A): 760
  • OPENING (B): 1300
-
Infill 2 Part Cover & Frame - Class C FAC713C-2
Product Specifications
  • COVER (X): 1520
  • COVER (Y): 810
  • COVER (Z): 72
  • FRAME (C): 1525
  • FRAME (D): 910
  • FRAME (E): 85
  • OPENING (A): 760
  • OPENING (B): 1450
-
Infill 2 Part Cover & Frame - Class C FAC715C-2
Product Specifications
  • COVER (X): 1670
  • COVER (Y): 810
  • COVER (Z): 72
  • FRAME (C): 1675
  • FRAME (D): 910
  • FRAME (E): 85
  • OPENING (A): 760
  • OPENING (B): 1600
-
Infill 2 Part Cover & Frame - Class C FAC912C-2
Product Specifications
  • COVER (X): 1360
  • COVER (Y): 990
  • COVER (Z): 72
  • FRAME (C): 1375
  • FRAME (D): 1060
  • FRAME (E): 85
  • OPENING (A): 910
  • OPENING (B): 1300
-
Infill 2 Part Cover & Frame - Class C FAC915C-2
Product Specifications
  • COVER (X): 1660
  • COVER (Y): 990
  • COVER (Z): 72
  • FRAME (C): 1675
  • FRAME (D): 1060
  • FRAME (E): 85
  • OPENING (A): 910
  • OPENING (B): 1600
-
Infill 2 Part Cover & Frame - Class C FAC918C-2
Product Specifications
  • COVER (X): 1960
  • COVER (Y): 990
  • COVER (Z): 72
  • FRAME (C): 1975
  • FRAME (D): 1060
  • FRAME (E): 85
  • OPENING (A): 910
  • OPENING (B): 1900
-
Infill Cover & Frame - Class C CAC33C
Product Specifications
  • COVER DEPTH (Z): 72
  • COVER LENGTH (X): 385
  • COVER WIDTH (Y): 375
  • FRAME DEPTH (E): 85
  • FRAME LENGTH (C): 460
  • FRAME WIDTH (D): 415
  • OPENING LENGTH (A): 305
  • OPENING WIDTH (B): 305
-
Infill Cover & Frame - Class C CAC43C
Product Specifications
  • COVER DEPTH (Z): 72
  • COVER LENGTH (X): 540
  • COVER WIDTH (Y): 375
  • FRAME DEPTH (E): 85
  • FRAME LENGTH (C): 615
  • FRAME WIDTH (D): 405
  • OPENING LENGTH (A): 460
  • OPENING WIDTH (B): 305
-

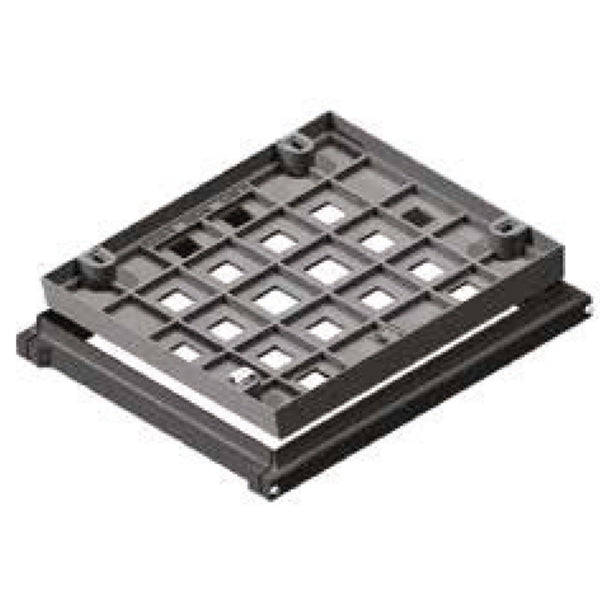

Infill Cover & Frame - Class C CAC44C
Product Specifications
  • COVER DEPTH (Z): 72
  • COVER LENGTH (X): 540
  • COVER WIDTH (Y): 530
  • FRAME DEPTH (E): 85
  • FRAME LENGTH (C): 615
  • FRAME WIDTH (D): 565
  • OPENING LENGTH (A): 460
  • OPENING WIDTH (B): 460
-
Infill Cover & Frame - Class C CAC64C
Product Specifications
  • COVER DEPTH (Z): 72
  • COVER LENGTH (X): 690
  • COVER WIDTH (Y): 530
  • FRAME DEPTH (E): 85
  • FRAME LENGTH (C): 765
  • FRAME WIDTH (D): 565
  • OPENING LENGTH (A): 610
  • OPENING WIDTH (B): 460
-
Infill Cover & Frame - Class C CAC66C
Product Specifications
  • COVER DEPTH (Z): 72
  • COVER LENGTH (X): 690
  • COVER WIDTH (Y): 680
  • FRAME DEPTH (E): 85
  • FRAME LENGTH (C): 765
  • FRAME WIDTH (D): 710
  • OPENING LENGTH (A): 610
  • OPENING WIDTH (B): 610
-
Infill Cover & Frame - Class C CAC76C
Product Specifications
  • COVER DEPTH (Z): 72
  • COVER LENGTH (X): 845
  • COVER WIDTH (Y): 680
  • FRAME DEPTH (E): 85
  • FRAME LENGTH (C): 915
  • FRAME WIDTH (D): 710
  • OPENING LENGTH (A): 760
  • OPENING WIDTH (B): 610
-
Infill Cover & Frame - Class C CAC77C
Product Specifications
  • COVER DEPTH (Z): 72
  • COVER LENGTH (X): 845
  • COVER WIDTH (Y): 835
  • FRAME DEPTH (E): 85
  • FRAME LENGTH (C): 915
  • FRAME WIDTH (D): 865
  • OPENING LENGTH (A): 760
  • OPENING WIDTH (B): 760
-
Infill Cover & Frame - Class C CAC96C
Product Specifications
  • COVER DEPTH (Z): 72
  • COVER LENGTH (X): 995
  • COVER WIDTH (Y): 680
  • FRAME DEPTH (E): 85
  • FRAME LENGTH (C): 1070
  • FRAME WIDTH (D): 710
  • OPENING LENGTH (A): 910
  • OPENING WIDTH (B): 610
-
Infill Cover & Frame - Class C CAC99C
Product Specifications
  • COVER DEPTH (Z): 72
  • COVER LENGTH (X): 995
  • COVER WIDTH (Y): 980
  • FRAME DEPTH (E): 85
  • FRAME LENGTH (C): 1070
  • FRAME WIDTH (D): 1020
  • OPENING LENGTH (A): 910
  • OPENING WIDTH (B): 910
-
Infill Cover & Frame - Class C FAC1212C-2
Product Specifications
  • COVER DEPTH (Z): 72
  • COVER LENGTH (X): 1260
  • COVER WIDTH (Y): 1350
  • FRAME DEPTH (E): 85
  • FRAME LENGTH (C): 1475
  • FRAME WIDTH (D): 1330
  • OPENING LENGTH (A): 1200
  • OPENING WIDTH (B): 1260
-
Infill Cover & Frame - Class C FAC33C
Product Specifications
  • COVER DEPTH (Z): 72
  • COVER LENGTH (X): 385
  • COVER WIDTH (Y): 375
  • FRAME DEPTH (E): 85
  • FRAME LENGTH (C): 460
  • FRAME WIDTH (D): 415
  • OPENING LENGTH (A): 305
  • OPENING WIDTH (B): 305
-
Infill Cover & Frame - Class C FAC43C
Product Specifications
  • COVER DEPTH (Z): 72
  • COVER LENGTH (X): 540
  • COVER WIDTH (Y): 375
  • FRAME DEPTH (E): 85
  • FRAME LENGTH (C): 615
  • FRAME WIDTH (D): 405
  • OPENING LENGTH (A): 460
  • OPENING WIDTH (B): 305
-

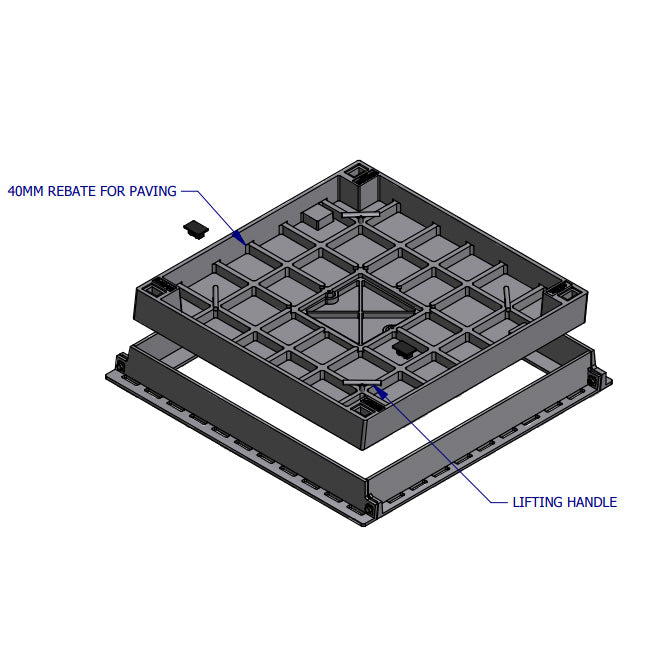

Infill Cover & Frame - Class C FAC44C
Product Specifications
  • COVER DEPTH (Z): 72
  • COVER LENGTH (X): 540
  • COVER WIDTH (Y): 530
  • FRAME DEPTH (E): 85
  • FRAME LENGTH (C): 615
  • FRAME WIDTH (D): 565
  • OPENING LENGTH (A): 460
  • OPENING WIDTH (B): 460
-
Infill Cover & Frame - Class C FAC64C
Product Specifications
  • COVER DEPTH (Z): 72
  • COVER LENGTH (X): 690
  • COVER WIDTH (Y): 530
  • FRAME DEPTH (E): 85
  • FRAME LENGTH (C): 765
  • FRAME WIDTH (D): 565
  • OPENING LENGTH (A): 610
  • OPENING WIDTH (B): 460
-
Infill Cover & Frame - Class C FAC66C
Product Specifications
  • COVER DEPTH (Z): 72
  • COVER LENGTH (X): 690
  • COVER WIDTH (Y): 680
  • FRAME DEPTH (E): 85
  • FRAME LENGTH (C): 765
  • FRAME WIDTH (D): 710
  • OPENING LENGTH (A): 610
  • OPENING WIDTH (B): 610
-
Infill Cover & Frame - Class C FAC76C
Product Specifications
  • COVER DEPTH (Z): 72
  • COVER LENGTH (X): 845
  • COVER WIDTH (Y): 680
  • FRAME DEPTH (E): 85
  • FRAME LENGTH (C): 915
  • FRAME WIDTH (D): 710
  • OPENING LENGTH (A): 760
  • OPENING WIDTH (B): 610
-
Infill Cover & Frame - Class C FAC77C
Product Specifications
  • COVER DEPTH (Z): 72
  • COVER LENGTH (X): 845
  • COVER WIDTH (Y): 835
  • FRAME DEPTH (E): 85
  • FRAME LENGTH (C): 915
  • FRAME WIDTH (D): 865
  • OPENING LENGTH (A): 760
  • OPENING WIDTH (B): 760
-
Infill Cover & Frame - Class C FAC96C
Product Specifications
  • COVER DEPTH (Z): 72
  • COVER LENGTH (X): 995
  • COVER WIDTH (Y): 680
  • FRAME DEPTH (E): 85
  • FRAME LENGTH (C): 1070
  • FRAME WIDTH (D): 710
  • OPENING LENGTH (A): 910
  • OPENING WIDTH (B): 610
-
Infill Cover & Frame - Class C FAC99C
Product Specifications
  • COVER DEPTH (Z): 72
  • COVER LENGTH (X): 995
  • COVER WIDTH (Y): 980
  • FRAME DEPTH (E): 85
  • FRAME LENGTH (C): 1070
  • FRAME WIDTH (D): 1020
  • OPENING LENGTH (A): 910
  • OPENING WIDTH (B): 910
-
