Storm Water - Drainage Grates

Concrete Surrounds for Dish Drains S66V+V66CO
Product Specifications
  • CLEAR (X) OPENING: 600
  • CLEAR (Y) OPENING: 600
  • DISH (D) INVERT: 65
  • OVERALL DEPTH (C): 250
  • OVERALL LENGTH (B): 900
  • OVERALL WIDTH (A): 900
-
Concrete Surrounds for Dish Drains S96RK+RK95CO*
Product Specifications
  • CLEAR (X) OPENING: 930
  • CLEAR (Y) OPENING: 500
  • DISH (D) INVERT: 100
  • OVERALL DEPTH (C): 270
  • OVERALL LENGTH (B): 900
  • OVERALL WIDTH (A): 1200
-
Concrete Surrounds for Dish Drains S96V+V96CO
Product Specifications
  • CLEAR (X) OPENING: 900
  • CLEAR (Y) OPENING: 600
  • DISH (D) INVERT: 65
  • OVERALL DEPTH (C): 250
  • OVERALL LENGTH (B): 900
  • OVERALL WIDTH (A): 1200
-
Concrete Surrounds for Dish Drains S99V+V99C0
Product Specifications
  • CLEAR (X) OPENING: 900
  • CLEAR (Y) OPENING: 900
  • DISH (D) INVERT: 65
  • OVERALL DEPTH (C): 250
  • OVERALL LENGTH (B): 1200
  • OVERALL WIDTH (A): 1200
-
Concrete Surrounds for Dish Drains SSB1+RTASB1
Product Specifications
  • CLEAR (X) OPENING: 680
  • CLEAR (Y) OPENING: 745
  • DISH (D) INVERT: 60
  • OVERALL DEPTH (C): 300
  • OVERALL LENGTH (B): 1000
  • OVERALL WIDTH (A): 1200
-
Concrete Surrounds for Dish Drains SSK1+RTASK1
Product Specifications
  • CLEAR (X) OPENING: 680
  • CLEAR (Y) OPENING: 875
  • DISH (D) INVERT: 120
  • OVERALL DEPTH (C): 300
  • OVERALL LENGTH (B): 1000
  • OVERALL WIDTH (A): 1200
-
Concrete Surrounds for Dish Drains SSK2+RTASK2
Product Specifications
  • CLEAR (X) OPENING: 1515
  • CLEAR (Y) OPENING: 875
  • DISH (D) INVERT: 120
  • OVERALL DEPTH (C): 300
  • OVERALL LENGTH (B): 1000
  • OVERALL WIDTH (A): 2000
-
Concrete Surrounds for Dish Drains SSO1+RTASO1
Product Specifications
  • CLEAR (X) OPENING: 680
  • CLEAR (Y) OPENING: 745
  • DISH (D) INVERT: 100
  • OVERALL DEPTH (C): 300
  • OVERALL LENGTH (B): 1000
  • OVERALL WIDTH (A): 1200
-
Concrete Surrounds for Dish Drains SSO2+RTASO2
Product Specifications
  • CLEAR (X) OPENING: 1515
  • CLEAR (Y) OPENING: 745
  • DISH (D) INVERT: 100
  • OVERALL DEPTH (C): 300
  • OVERALL LENGTH (B): 1000
  • OVERALL WIDTH (A): 2000
-
Concrete Surrounds for lids S1212B+FAG99B
Product Specifications
  • CLASS: CLASS B
  • CLEAR OPENING (X): 900
  • CLEAR OPENING (Y): 900
  • LID TYPE: CAST GRATE
  • OVERALLLENGTH (A): 1500
  • OVERALL DEPTH (C): 200
  • OVERALL LENGTH (B): 1500
-
Concrete Surrounds for lids S1212B+FAG99D
Product Specifications
  • CLASS: CLASS D
  • CLEAR OPENING (X): 900
  • CLEAR OPENING (Y): 900
  • LID TYPE: CAST GRATE
  • OVERALLLENGTH (A): 1500
  • OVERALL DEPTH (C): 200
  • OVERALL LENGTH (B): 1500
-
Concrete Surrounds for lids S1212B+MSC1212EX
Product Specifications
  • CLASS: CLASS D
  • CLEAR OPENING (X): 1200
  • CLEAR OPENING (Y): 1200
  • LID TYPE: GAL GRATE
  • OVERALLLENGTH (A): 1500
  • OVERALL DEPTH (C): 200
  • OVERALL LENGTH (B): 1500
-
Concrete Surrounds for lids S1212B+MSC1212HT
Product Specifications
  • CLASS: HEAVY
  • CLEAR OPENING (X): 1200
  • CLEAR OPENING (Y): 1200
  • LID TYPE: GAL GRATE
  • OVERALLLENGTH (A): 1500
  • OVERALL DEPTH (C): 200
  • OVERALL LENGTH (B): 1500
-
Concrete Surrounds for lids S1212B+MSC1212LT
Product Specifications
  • CLASS: LIGHT
  • CLEAR OPENING (X): 1200
  • CLEAR OPENING (Y): 1200
  • LID TYPE: GAL GRATE
  • OVERALLLENGTH (A): 1500
  • OVERALL DEPTH (C): 200
  • OVERALL LENGTH (B): 1500
-
Concrete Surrounds for lids S1212B+MSC1212MT
Product Specifications
  • CLASS: MEDIUM
  • CLEAR OPENING (X): 1200
  • CLEAR OPENING (Y): 1200
  • LID TYPE: GAL GRATE
  • OVERALLLENGTH (A): 1500
  • OVERALL DEPTH (C): 200
  • OVERALL LENGTH (B): 1500
-
Concrete Surrounds for lids S1212B+MSC99EX
Product Specifications
  • CLASS: X-HEAVY
  • CLEAR OPENING (X): 900
  • CLEAR OPENING (Y): 900
  • LID TYPE: GAL GRATE
  • OVERALLLENGTH (A): 1500
  • OVERALL DEPTH (C): 200
  • OVERALL LENGTH (B): 1500
-
Concrete Surrounds for lids S1212B+MSC99HT
Product Specifications
  • CLASS: HEAVY
  • CLEAR OPENING (X): 900
  • CLEAR OPENING (Y): 900
  • LID TYPE: GAL GRATE
  • OVERALLLENGTH (A): 1500
  • OVERALL DEPTH (C): 200
  • OVERALL LENGTH (B): 1500
-
Concrete Surrounds for lids S1212B+MSC99LT
Product Specifications
  • CLASS: LIGHT
  • CLEAR OPENING (X): 900
  • CLEAR OPENING (Y): 900
  • LID TYPE: GAL GRATE
  • OVERALLLENGTH (A): 1500
  • OVERALL DEPTH (C): 200
  • OVERALL LENGTH (B): 1500
-
Concrete Surrounds for lids S1212B+MSC99MT
Product Specifications
  • CLASS: MEDIUM
  • CLEAR OPENING (X): 900
  • CLEAR OPENING (Y): 900
  • LID TYPE: GAL GRATE
  • OVERALLLENGTH (A): 1500
  • OVERALL DEPTH (C): 200
  • OVERALL LENGTH (B): 1500
-
Concrete Surrounds for lids S129B+FAG96B
Product Specifications
  • CLASS: CLASS B
  • CLEAR OPENING (X): 900
  • CLEAR OPENING (Y): 600
  • LID TYPE: CAST GRATE
  • OVERALLLENGTH (A): 1500
  • OVERALL DEPTH (C): 200
  • OVERALL LENGTH (B): 1200
-
Concrete Surrounds for lids S129B+FAG96D
Product Specifications
  • CLASS: CLASS D
  • CLEAR OPENING (X): 900
  • CLEAR OPENING (Y): 600
  • LID TYPE: CAST GRATE
  • OVERALLLENGTH (A): 1500
  • OVERALL DEPTH (C): 200
  • OVERALL LENGTH (B): 1200
-
Concrete Surrounds for lids S129B+MSC96EX
Product Specifications
  • CLASS: CLASS D
  • CLEAR OPENING (X): 900
  • CLEAR OPENING (Y): 600
  • LID TYPE: GAL GRATE
  • OVERALLLENGTH (A): 1500
  • OVERALL DEPTH (C): 200
  • OVERALL LENGTH (B): 1200
-
Concrete Surrounds for lids S129B+MSC96HT
Product Specifications
  • CLASS: HEAVY
  • CLEAR OPENING (X): 900
  • CLEAR OPENING (Y): 600
  • LID TYPE: GAL GRATE
  • OVERALLLENGTH (A): 1500
  • OVERALL DEPTH (C): 200
  • OVERALL LENGTH (B): 1200
-

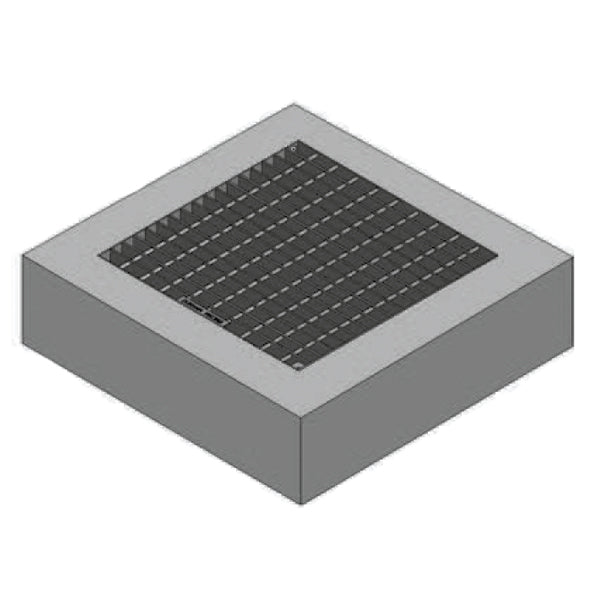

Concrete Surrounds for lids S129B+MSC96LT
Product Specifications
  • CLASS: LIGHT
  • CLEAR OPENING (X): 900
  • CLEAR OPENING (Y): 600
  • LID TYPE: GAL GRATE
  • OVERALLLENGTH (A): 1500
  • OVERALL DEPTH (C): 200
  • OVERALL LENGTH (B): 1200
-
Concrete Surrounds for lids S129B+MSC96MT
Product Specifications
  • CLASS: MEDIUM
  • CLEAR OPENING (X): 900
  • CLEAR OPENING (Y): 600
  • LID TYPE: GAL GRATE
  • OVERALLLENGTH (A): 1500
  • OVERALL DEPTH (C): 200
  • OVERALL LENGTH (B): 1200
-
Concrete Surrounds for lids S1515B+FAG99B
Product Specifications
  • CLASS: CLASS B
  • CLEAR OPENING (X): 900
  • CLEAR OPENING (Y): 900
  • LID TYPE: CAST GRATE
  • OVERALLLENGTH (A): 1700
  • OVERALL DEPTH (C): 200
  • OVERALL LENGTH (B): 1700
-
Concrete Surrounds for lids S1515B+FAG99D
Product Specifications
  • CLASS: CLASS D
  • CLEAR OPENING (X): 900
  • CLEAR OPENING (Y): 900
  • LID TYPE: CAST GRATE
  • OVERALLLENGTH (A): 1700
  • OVERALL DEPTH (C): 200
  • OVERALL LENGTH (B): 1700
-
Concrete Surrounds for lids S1515B+MSC1212EX
Product Specifications
  • CLASS: CLASS D
  • CLEAR OPENING (X): 1200
  • CLEAR OPENING (Y): 1200
  • LID TYPE: GAL GRATE
  • OVERALLLENGTH (A): 1700
  • OVERALL DEPTH (C): 200
  • OVERALL LENGTH (B): 1700
-
Concrete Surrounds for lids S1515B+MSC1212HT
Product Specifications
  • CLASS: HEAVY
  • CLEAR OPENING (X): 1200
  • CLEAR OPENING (Y): 1200
  • LID TYPE: GAL GRATE
  • OVERALLLENGTH (A): 1700
  • OVERALL DEPTH (C): 200
  • OVERALL LENGTH (B): 1700
-
Concrete Surrounds for lids S1515B+MSC1212LT
Product Specifications
  • CLASS: LIGHT
  • CLEAR OPENING (X): 1200
  • CLEAR OPENING (Y): 1200
  • LID TYPE: GAL GRATE
  • OVERALLLENGTH (A): 1700
  • OVERALL DEPTH (C): 200
  • OVERALL LENGTH (B): 1700
-
Concrete Surrounds for lids S1515B+MSC1212MT
Product Specifications
  • CLASS: MEDIUM
  • CLEAR OPENING (X): 1200
  • CLEAR OPENING (Y): 1200
  • LID TYPE: GAL GRATE
  • OVERALLLENGTH (A): 1700
  • OVERALL DEPTH (C): 200
  • OVERALL LENGTH (B): 1700
-
Concrete Surrounds for lids S1515B+MSC99EX
Product Specifications
  • CLASS: CLASS D
  • CLEAR OPENING (X): 900
  • CLEAR OPENING (Y): 900
  • LID TYPE: GAL GRATE
  • OVERALLLENGTH (A): 1700
  • OVERALL DEPTH (C): 200
  • OVERALL LENGTH (B): 1700
-
Concrete Surrounds for lids S1515B+MSC99HT
Product Specifications
  • CLASS: HEAVY
  • CLEAR OPENING (X): 900
  • CLEAR OPENING (Y): 900
  • LID TYPE: GAL GRATE
  • OVERALLLENGTH (A): 1700
  • OVERALL DEPTH (C): 200
  • OVERALL LENGTH (B): 1700
-
Concrete Surrounds for lids S1515B+MSC99LT
Product Specifications
  • CLASS: LIGHT
  • CLEAR OPENING (X): 900
  • CLEAR OPENING (Y): 900
  • LID TYPE: GAL GRATE
  • OVERALLLENGTH (A): 1700
  • OVERALL DEPTH (C): 200
  • OVERALL LENGTH (B): 1700
-
Concrete Surrounds for lids S1515B+MSC99MT
Product Specifications
  • CLASS: MEDIUM
  • CLEAR OPENING (X): 900
  • CLEAR OPENING (Y): 900
  • LID TYPE: GAL GRATE
  • OVERALLLENGTH (A): 1700
  • OVERALL DEPTH (C): 200
  • OVERALL LENGTH (B): 1700
-
Concrete Surrounds for lids S44B+FAG44B
Product Specifications
  • CLASS: CLASS B
  • CLEAR OPENING (X): 450
  • CLEAR OPENING (Y): 450
  • LID TYPE: CAST GRATE
  • OVERALLLENGTH (A): 800
  • OVERALL DEPTH (C): 200
  • OVERALL LENGTH (B): 800
-
Concrete Surrounds for lids S44B+FAG44D
Product Specifications
  • CLASS: CLASS D
  • CLEAR OPENING (X): 450
  • CLEAR OPENING (Y): 450
  • LID TYPE: CAST GRATE
  • OVERALLLENGTH (A): 800
  • OVERALL DEPTH (C): 200
  • OVERALL LENGTH (B): 800
-
Concrete Surrounds for lids S44B+MSC44EX
Product Specifications
  • CLASS: CLASS D
  • CLEAR OPENING (X): 450
  • CLEAR OPENING (Y): 450
  • LID TYPE: GAL GRATE
  • OVERALLLENGTH (A): 800
  • OVERALL DEPTH (C): 200
  • OVERALL LENGTH (B): 800
-
Concrete Surrounds for lids S44B+MSC44HT
Product Specifications
  • CLASS: HEAVY
  • CLEAR OPENING (X): 450
  • CLEAR OPENING (Y): 450
  • LID TYPE: GAL GRATE
  • OVERALLLENGTH (A): 800
  • OVERALL DEPTH (C): 200
  • OVERALL LENGTH (B): 800
-
Concrete Surrounds for lids S44B+MSC44LT
Product Specifications
  • CLASS: LIGHT
  • CLEAR OPENING (X): 450
  • CLEAR OPENING (Y): 450
  • LID TYPE: GAL GRATE
  • OVERALLLENGTH (A): 800
  • OVERALL DEPTH (C): 200
  • OVERALL LENGTH (B): 800
-
Concrete Surrounds for lids S44B+MSC44MT
Product Specifications
  • CLASS: MEDIUM
  • CLEAR OPENING (X): 450
  • CLEAR OPENING (Y): 450
  • LID TYPE: GAL GRATE
  • OVERALLLENGTH (A): 800
  • OVERALL DEPTH (C): 200
  • OVERALL LENGTH (B): 800
-
Concrete Surrounds for lids S66B+FAG66B
Product Specifications
  • CLASS: CLASS B
  • CLEAR OPENING (X): 600
  • CLEAR OPENING (Y): 600
  • LID TYPE: CAST GRATE
  • OVERALLLENGTH (A): 900
  • OVERALL DEPTH (C): 200
  • OVERALL LENGTH (B): 900
-
Concrete Surrounds for lids S66B+FAG66D
Product Specifications
  • CLASS: CLASS D
  • CLEAR OPENING (X): 600
  • CLEAR OPENING (Y): 600
  • LID TYPE: CAST GRATE
  • OVERALLLENGTH (A): 900
  • OVERALL DEPTH (C): 200
  • OVERALL LENGTH (B): 900
-
Concrete Surrounds for lids S66B+MSC66EX
Product Specifications
  • CLASS: X-HEAVY
  • CLEAR OPENING (X): 600
  • CLEAR OPENING (Y): 600
  • LID TYPE: GAL GRATE
  • OVERALLLENGTH (A): 900
  • OVERALL DEPTH (C): 200
  • OVERALL LENGTH (B): 900
-
Concrete Surrounds for lids S66B+MSC66HT
Product Specifications
  • CLASS: HEAVY
  • CLEAR OPENING (X): 600
  • CLEAR OPENING (Y): 600
  • LID TYPE: GAL GRATE
  • OVERALLLENGTH (A): 900
  • OVERALL DEPTH (C): 200
  • OVERALL LENGTH (B): 900
-
Concrete Surrounds for lids S66B+MSC66LT
Product Specifications
  • CLASS: LIGHT
  • CLEAR OPENING (X): 600
  • CLEAR OPENING (Y): 600
  • LID TYPE: GAL GRATE
  • OVERALLLENGTH (A): 900
  • OVERALL DEPTH (C): 200
  • OVERALL LENGTH (B): 900
-
Concrete Surrounds for lids S66B+MSC66MT
Product Specifications
  • CLASS: MEDIUM
  • CLEAR OPENING (X): 600
  • CLEAR OPENING (Y): 600
  • LID TYPE: GAL GRATE
  • OVERALLLENGTH (A): 900
  • OVERALL DEPTH (C): 200
  • OVERALL LENGTH (B): 900
-
Concrete Surrounds for lids S96B+FAG96B
Product Specifications
  • CLASS: CLASS B
  • CLEAR OPENING (X): 900
  • CLEAR OPENING (Y): 600
  • LID TYPE: CAST GRATE
  • OVERALLLENGTH (A): 1200
  • OVERALL DEPTH (C): 200
  • OVERALL LENGTH (B): 900
-

Search
