Storm Water - Drainage Grates - Kerb Grate

Ductile Bike Safe Grate & Frame - Class D DILCOM-D
Product Specifications
  • FRAME DEPTH (E): 75
  • FRAME LENGTH (C): 1045
  • FRAME WIDTH (D): 450
  • GRATE DEPTH (Z): 65
  • GRATE LENGTH (X): 990
  • GRATE WIDTH (Y): 405
  • OPENING LENGTH (A): 900
  • OPENING WIDTH (B): 700
-
Ductile Bike Safe Grate & Frame - Class D DISAL
Product Specifications
  • FRAME DEPTH (E): 105
  • FRAME LENGTH (C): 1040
  • FRAME WIDTH (D): 595
  • GRATE DEPTH (Z): 100
  • GRATE LENGTH (X): 915
  • GRATE WIDTH (Y): 520
  • OPENING LENGTH (A): 840
  • OPENING WIDTH (B): 525
-
Ductile Bike Safe Grate & Frame - Class D DISAS
Product Specifications
  • FRAME DEPTH (E): 105
  • FRAME LENGTH (C): 1040
  • FRAME WIDTH (D): 440
  • GRATE DEPTH (Z): 100
  • GRATE LENGTH (X): 915
  • GRATE WIDTH (Y): 365
  • OPENING LENGTH (A): 840
  • OPENING WIDTH (B): 375
-
Ductile Bike Safe Grate & Frame - Class D DS18
Product Specifications
  • FRAME DEPTH (E): 90
  • FRAME LENGTH (C): 1010
  • FRAME WIDTH (D): 515
  • GRATE DEPTH (Z): 75
  • GRATE LENGTH (X): 915
  • GRATE WIDTH (Y): 465
  • OPENING LENGTH (A): 860
  • OPENING WIDTH (B): 405
-
Ductile Bike Safe Grate & Frame - Class D DS22
Product Specifications
  • FRAME DEPTH (E): 95
  • FRAME LENGTH (C): 1030
  • FRAME WIDTH (D): 575
  • GRATE DEPTH (Z): 75
  • GRATE LENGTH (X): 930
  • GRATE WIDTH (Y): 535
  • OPENING LENGTH (A): 875
  • OPENING WIDTH (B): 475
-
Galvanised Kerb Entry Grate & Frame MSCCOM-C
Product Specifications
  • FRAME C: 1060
  • FRAME D: 555
  • FRAME E: 75
  • GRATE X: 1000
  • GRATE Y: 440
  • GRATE Z: 65
  • OPENING A: 900
  • OPENING B: 450
-
Galvanised Kerb Entry Grate & Frame MSLCOM-D
Product Specifications
  • FRAME C: 1060
  • FRAME D: 455
  • FRAME E: 75
  • GRATE X: 1000
  • GRATE Y: 380
  • GRATE Z: 65
  • OPENING A: 900
  • OPENING B: 400
-

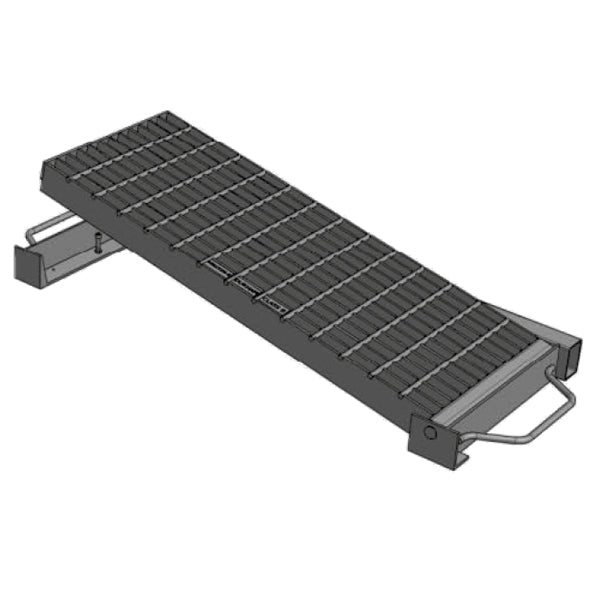

Galvanised Kerb Entry Grate & Frame MSSCOM-B
Product Specifications
  • FRAME C: 940
  • FRAME D: 455
  • FRAME E: 75
  • GRATE X: 885
  • GRATE Y: 380
  • GRATE Z: 65
  • OPENING A: 790
  • OPENING B: 400
-
Galvanised Kerb Entry Grate & Frame QGG96D
Product Specifications
  • FRAME C: 1150
  • FRAME D: 610
  • FRAME E: 80
  • GRATE X: 990
  • GRATE Y: 575
  • GRATE Z: 75
  • OPENING A: 900
  • OPENING B: 600
-

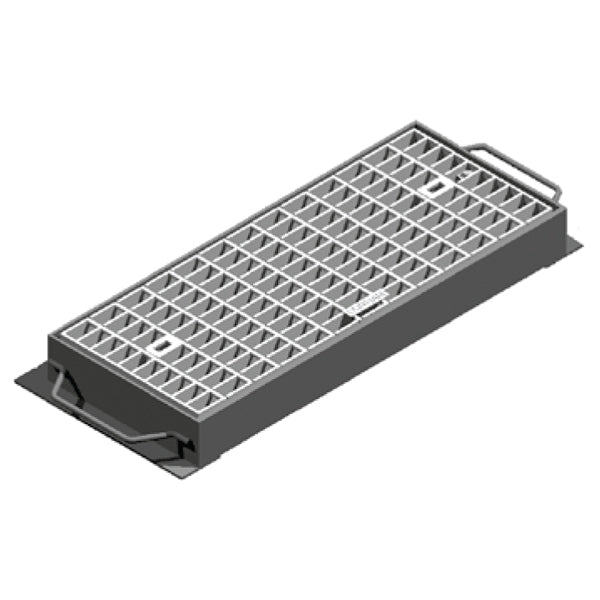

Galvanised Kerb Entry Grate & Frame RTASA3
Product Specifications
  • FRAME C: 1040
  • FRAME D: 630
  • FRAME E: 106
  • GRATE X: 915
  • GRATE Y: 515
  • GRATE Z: 100
  • OPENING A: 840
  • OPENING B: 430
-
Galvanised Kerb Entry Grate & Frame RTASAL
Product Specifications
  • FRAME C: 1040
  • FRAME D: 590
  • FRAME E: 106
  • GRATE X: 915
  • GRATE Y: 515
  • GRATE Z: 100
  • OPENING A: 840
  • OPENING B: 525
-
Galvanised Kerb Entry Grate & Frame RTASAS
Product Specifications
  • FRAME C: 1040
  • FRAME D: 435
  • FRAME E: 106
  • GRATE X: 915
  • GRATE Y: 360
  • GRATE Z: 100
  • OPENING A: 840
  • OPENING B: 374
-
Galvanised Kerb Entry Grate & Frame SKLCOM-D
Product Specifications
  • FRAME C: 1060
  • FRAME D: 455
  • FRAME E: 75
  • GRATE X: 1000
  • GRATE Y: 380
  • GRATE Z: 65
  • OPENING A: 900
  • OPENING B: 400
-
Galvanised RMS Grate & Frame RTA F
Product Specifications
  • FRAME C: 730
  • FRAME D: 725
  • FRAME E: 85
  • GRATE X: 610
  • GRATE Y: 620
  • GRATE Z: 75
  • OPENING A: 580
  • OPENING B: 525
-
Galvanised RMS Grate & Frame RTASAL
Product Specifications
  • FRAME C: 1040
  • FRAME D: 590
  • FRAME E: 106
  • GRATE X: 915
  • GRATE Y: 515
  • GRATE Z: 100
  • OPENING A: 840
  • OPENING B: 525
-
Galvanised RMS Grate & Frame RTASAS
Product Specifications
  • FRAME C: 1040
  • FRAME D: 435
  • FRAME E: 106
  • GRATE X: 915
  • GRATE Y: 360
  • GRATE Z: 100
  • OPENING A: 840
  • OPENING B: 374
-
Galvanised RMS Grate & Frame RTASE1
Product Specifications
  • FRAME C: 740
  • FRAME D: 540
  • FRAME E: 85
  • GRATE X: 610
  • GRATE Y: 310
  • GRATE Z: 75
  • OPENING A: 525
  • OPENING B: 340
-
Galvanised RMS Grate & Frame RTASE2
Product Specifications
  • FRAME C: 725
  • FRAME D: 400
  • FRAME E: 85
  • GRATE X: 610
  • GRATE Y: 310
  • GRATE Z: 75
  • OPENING A: 525
  • OPENING B: 340
-
