Storm Water - Drainage Grates

Ductile Bike Safe Grate & Frame - Class D DILCOM-D
Product Specifications
  • FRAME DEPTH (E): 75
  • FRAME LENGTH (C): 1045
  • FRAME WIDTH (D): 450
  • GRATE DEPTH (Z): 65
  • GRATE LENGTH (X): 990
  • GRATE WIDTH (Y): 405
  • OPENING LENGTH (A): 900
  • OPENING WIDTH (B): 700
-
Ductile Bike Safe Grate & Frame - Class D DISAL
Product Specifications
  • FRAME DEPTH (E): 105
  • FRAME LENGTH (C): 1040
  • FRAME WIDTH (D): 595
  • GRATE DEPTH (Z): 100
  • GRATE LENGTH (X): 915
  • GRATE WIDTH (Y): 520
  • OPENING LENGTH (A): 840
  • OPENING WIDTH (B): 525
-
Ductile Bike Safe Grate & Frame - Class D DISAS
Product Specifications
  • FRAME DEPTH (E): 105
  • FRAME LENGTH (C): 1040
  • FRAME WIDTH (D): 440
  • GRATE DEPTH (Z): 100
  • GRATE LENGTH (X): 915
  • GRATE WIDTH (Y): 365
  • OPENING LENGTH (A): 840
  • OPENING WIDTH (B): 375
-
Ductile Bike Safe Grate & Frame - Class D DS18
Product Specifications
  • FRAME DEPTH (E): 90
  • FRAME LENGTH (C): 1010
  • FRAME WIDTH (D): 515
  • GRATE DEPTH (Z): 75
  • GRATE LENGTH (X): 915
  • GRATE WIDTH (Y): 465
  • OPENING LENGTH (A): 860
  • OPENING WIDTH (B): 405
-
Ductile Bike Safe Grate & Frame - Class D DS22
Product Specifications
  • FRAME DEPTH (E): 95
  • FRAME LENGTH (C): 1030
  • FRAME WIDTH (D): 575
  • GRATE DEPTH (Z): 75
  • GRATE LENGTH (X): 930
  • GRATE WIDTH (Y): 535
  • OPENING LENGTH (A): 875
  • OPENING WIDTH (B): 475
-
Ductile Bike Safe Grate & Frame - Class D FAG44D
Product Specifications
  • FRAME DEPTH (E): 100
  • FRAME LENGTH (C): 630
  • FRAME WIDTH (D): 610
  • GRATE DEPTH (Z): 72
  • GRATE LENGTH (X): 545
  • GRATE WIDTH (Y): 530
  • OPENING LENGTH (A): 450
  • OPENING WIDTH (B): 450
-
Ductile Bike Safe Grate & Frame - Class D FAG66D
Product Specifications
  • FRAME DEPTH (E): 100
  • FRAME LENGTH (C): 780
  • FRAME WIDTH (D): 760
  • GRATE DEPTH (Z): 72
  • GRATE LENGTH (X): 690
  • GRATE WIDTH (Y): 680
  • OPENING LENGTH (A): 600
  • OPENING WIDTH (B): 600
-
Ductile Bike Safe Grate & Frame - Class D FAG96D
Product Specifications
  • FRAME DEPTH (E): 100
  • FRAME LENGTH (C): 1080
  • FRAME WIDTH (D): 760
  • GRATE DEPTH (Z): 72
  • GRATE LENGTH (X): 990
  • GRATE WIDTH (Y): 680
  • OPENING LENGTH (A): 900
  • OPENING WIDTH (B): 600
-
Ductile Bike Safe Grate & Frame - Class D FAG99D
Product Specifications
  • FRAME DEPTH (E): 100
  • FRAME LENGTH (C): 1080
  • FRAME WIDTH (D): 1060
  • GRATE DEPTH (Z): 72
  • GRATE LENGTH (X): 990
  • GRATE WIDTH (Y): 985
  • OPENING LENGTH (A): 900
  • OPENING WIDTH (B): 900
-
Ductile Bike Safe Trench Grate & Frame - Class D UN15D
Product Specifications
  • FRAME (C): 610
  • FRAME (D): 285
  • FRAME (E): 40
  • GRATE (X): 610
  • GRATE (Y): 200
  • GRATE (Z): 25
  • OPENING (A): 610
  • OPENING (B): 150
-
Ductile Bike Safe Trench Grate & Frame - Class D UNI23D
Product Specifications
  • FRAME (C): 610
  • FRAME (D): 365
  • FRAME (E): 40
  • GRATE (X): 610
  • GRATE (Y): 280
  • GRATE (Z): 25
  • OPENING (A): 610
  • OPENING (B): 230
-
Ductile Bike Safe Trench Grate & Frame - Class D UNI30D
Product Specifications
  • FRAME (C): 610
  • FRAME (D): 435
  • FRAME (E): 40
  • GRATE (X): 610
  • GRATE (Y): 350
  • GRATE (Z): 25
  • OPENING (A): 610
  • OPENING (B): 300
-
Ductile Bike Safe Trench Grate & Frame - Class D UNI45D
Product Specifications
  • FRAME (C): 610
  • FRAME (D): 585
  • FRAME (E): 40
  • GRATE (X): 610
  • GRATE (Y): 500
  • GRATE (Z): 25
  • OPENING (A): 610
  • OPENING (B): 450
-
Ductile Pedestrian Guard Grate & Channel - Class D DRAIN100
Product Specifications
  • CHANNEL (C): 1000
  • CHANNEL (D): 140
  • CHANNE (E): 150
  • GRATE (X): 2@500
  • GRATE (Y): 130
  • GRATE (Z): 20
  • OPENING (A): 1000
  • OPENING (B): 100
-
Ductile Pedestrian Guard Grate & Channel - Class D DRAIN150
Product Specifications
  • CHANNEL (C): 1000
  • CHANNEL (D): 190
  • CHANNE (E): 180
  • GRATE (X): 2@500
  • GRATE (Y): 180
  • GRATE (Z): 20
  • OPENING (A): 1000
  • OPENING (B): 150
-
Ductile Pedestrian Guard Grate & Channel - Class D DRAIN200
Product Specifications
  • CHANNEL (C): 1000
  • CHANNEL (D): 240
  • CHANNE (E): 220
  • GRATE (X): 2@500
  • GRATE (Y): 230
  • GRATE (Z): 20
  • OPENING (A): 1000
  • OPENING (B): 200
-
Ductile Pedestrian Guard Grate & Channel - Class D DRAIN300
Product Specifications
  • CHANNEL (C): 1000
  • CHANNEL (D): 340
  • CHANNE (E): 350
  • GRATE (X): 2@500
  • GRATE (Y): 330
  • GRATE (Z): 20
  • OPENING (A): 1000
  • OPENING (B): 300
-
Ductile Pedestrian Guard Trench Grate & Frame - Class D CHP15D
Product Specifications
  • FRAME (C): 610
  • FRAME (D): 285
  • FRAME (E): 40
  • GRATE (X): 610
  • GRATE (Y): 200
  • GRATE (Z): 25
  • OPENING (A): 610
  • OPENING (B): 150
-
Ductile Pedestrian Guard Trench Grate & Frame - Class D CHP23D
Product Specifications
  • FRAME (C): 610
  • FRAME (D): 365
  • FRAME (E): 40
  • GRATE (X): 610
  • GRATE (Y): 280
  • GRATE (Z): 25
  • OPENING (A): 610
  • OPENING (B): 230
-
Ductile Pedestrian Guard Trench Grate & Frame - Class D CHP30D
Product Specifications
  • FRAME (C): 610
  • FRAME (D): 435
  • FRAME (E): 40
  • GRATE (X): 610
  • GRATE (Y): 350
  • GRATE (Z): 25
  • OPENING (A): 610
  • OPENING (B): 300
-
Ductile Trench Grate CI623D
Product Specifications
  • DEPTH (C): 50
  • LENGTH (A): 610
  • WIDTH (B): 230
-
Ductile Trench Grate CI625D
Product Specifications
  • DEPTH (C): 50
  • LENGTH (A): 610
  • WIDTH (B): 255
-
Ductile Trench Grate CI630D
Product Specifications
  • DEPTH (C): 50
  • LENGTH (A): 610
  • WIDTH (B): 305
-
Ductile Trench Grate CI635D
Product Specifications
  • DEPTH (C): 50
  • LENGTH (A): 610
  • WIDTH (B): 355
-
Ductile Trench Grate CI638D
Product Specifications
  • DEPTH (C): 50
  • LENGTH (A): 610
  • WIDTH (B): 380
-
Ductile Trench Grate CI660D
Product Specifications
  • DEPTH (C): 50
  • LENGTH (A): 610
  • WIDTH (B): 610
-
Galvanised Dish Drain Grate & Frame RK95CO
Product Specifications
  • FRAME C: 1030
  • FRAME D: 610
  • FRAME E: 75
  • GRATE X: 1010
  • GRATE Y: 495
  • GRATE Z: 65
  • OPENING A: 930
  • OPENING B: 500
-
Galvanised Dish Drain Grate & Frame RTASB1
Product Specifications
  • FRAME C: 860
  • FRAME D: 765
  • FRAME E: 100
  • GRATE X: 835
  • GRATE Y: 730
  • GRATE Z: 90
  • OPENING A: 680
  • OPENING B: 745
-
Galvanised Dish Drain Grate & Frame RTASB2
Product Specifications
  • FRAME C: 1720
  • FRAME D: 765
  • FRAME E: 100
  • GRATE X: 1680
  • GRATE Y: 730
  • GRATE Z: 90
  • OPENING A: 1515
  • OPENING B: 745
-
Galvanised Dish Drain Grate & Frame RTASK1
Product Specifications
  • FRAME C: 860
  • FRAME D: 895
  • FRAME E: 85
  • GRATE X: 835
  • GRATE Y: 865
  • GRATE Z: 75
  • OPENING A: 680
  • OPENING B: 875
-
Galvanised Dish Drain Grate & Frame RTASK2
Product Specifications
  • FRAME C: 1720
  • FRAME D: 895
  • FRAME E: 85
  • GRATE X: 1680
  • GRATE Y: 865
  • GRATE Z: 75
  • OPENING A: 1515
  • OPENING B: 875
-
Galvanised Dish Drain Grate & Frame RTASO1
Product Specifications
  • FRAME C: 860
  • FRAME D: 765
  • FRAME E: 100
  • GRATE X: 835
  • GRATE Y: 730
  • GRATE Z: 90
  • OPENING A: 680
  • OPENING B: 745
-
Galvanised Dish Drain Grate & Frame RTASO2
Product Specifications
  • FRAME C: 1720
  • FRAME D: 765
  • FRAME E: 100
  • GRATE X: 1680
  • GRATE Y: 730
  • GRATE Z: 90
  • OPENING A: 1515
  • OPENING B: 745
-
Galvanised Dish Drain Grate & Frame V66CO
Product Specifications
  • FRAME C: 700
  • FRAME D: 730
  • FRAME E: 75
  • GRATE X: 680
  • GRATE Y: 600
  • GRATE Z: 65
  • OPENING A: 610
  • OPENING B: 610
-
Galvanised Dish Drain Grate & Frame V96CO
Product Specifications
  • FRAME C: 1010
  • FRAME D: 730
  • FRAME E: 75
  • GRATE X: 990
  • GRATE Y: 600
  • GRATE Z: 65
  • OPENING A: 910
  • OPENING B: 610
-
Galvanised Dish Drain Grate & Frame V99CO
Product Specifications
  • FRAME C: 1010
  • FRAME D: 1030
  • FRAME E: 75
  • GRATE X: 990
  • GRATE Y: 900
  • GRATE Z: 65
  • OPENING A: 910
  • OPENING B: 910
-

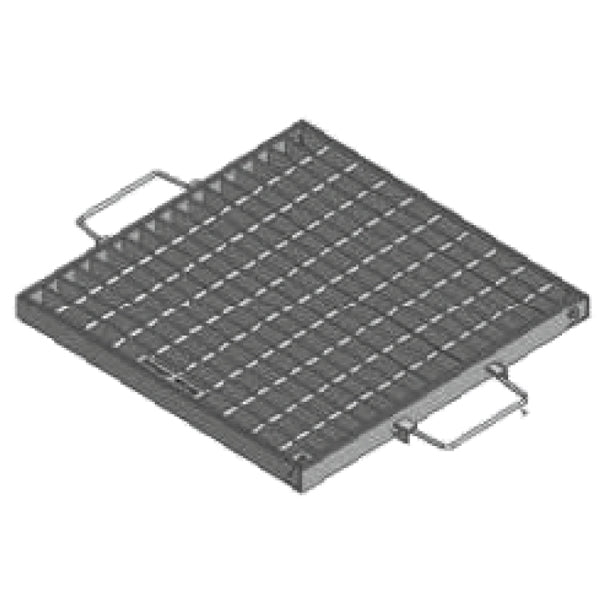

Galvanised Grate & Frame MSC1212EX
Product Specifications
  • FRAME C: 1310
  • FRAME D: 1310
  • FRAME E: 75
  • GRATE X: 1290
  • GRATE Y: 1290
  • GRATE Z: 65
  • OPENING A: 1200
  • OPENING B: 1200
-
Galvanised Grate & Frame MSC33EX
Product Specifications
  • FRAME C: 400
  • FRAME D: 400
  • FRAME E: 75
  • GRATE X: 380
  • GRATE Y: 380
  • GRATE Z: 65
  • OPENING A: 300
  • OPENING B: 300
-
Galvanised Grate & Frame MSC44EX
Product Specifications
  • FRAME C: 560
  • FRAME D: 560
  • FRAME E: 75
  • GRATE X: 540
  • GRATE Y: 540
  • GRATE Z: 65
  • OPENING A: 450
  • OPENING B: 450
-
Galvanised Grate & Frame MSC66EX
Product Specifications
  • FRAME C: 710
  • FRAME D: 710
  • FRAME E: 75
  • GRATE X: 690
  • GRATE Y: 690
  • GRATE Z: 65
  • OPENING A: 600
  • OPENING B: 600
-
Galvanised Grate & Frame MSC96EX
Product Specifications
  • FRAME C: 1010
  • FRAME D: 710
  • FRAME E: 75
  • GRATE X: 990
  • GRATE Y: 690
  • GRATE Z: 65
  • OPENING A: 900
  • OPENING B: 600
-
Galvanised Grate & Frame MSC99EX
Product Specifications
  • FRAME C: 1010
  • FRAME D: 1010
  • FRAME E: 75
  • GRATE X: 990
  • GRATE Y: 990
  • GRATE Z: 65
  • OPENING A: 900
  • OPENING B: 900
-

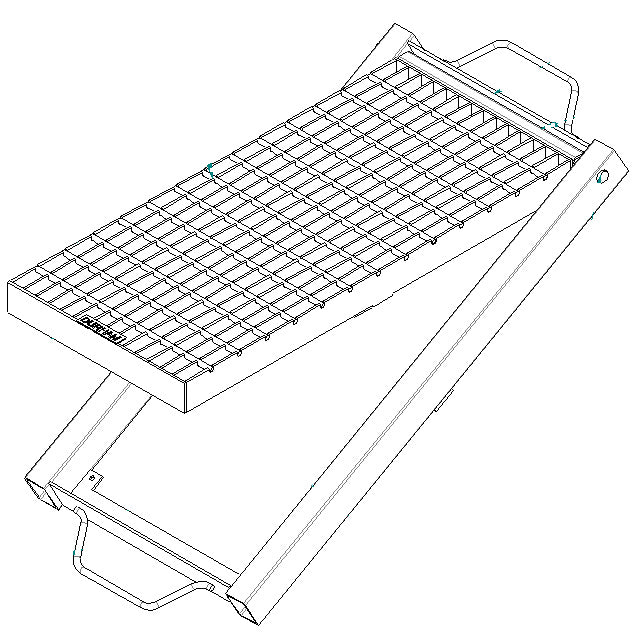

Galvanised Kerb Entry Grate & Frame MSCCOM-C
Product Specifications
  • FRAME C: 1060
  • FRAME D: 555
  • FRAME E: 75
  • GRATE X: 1000
  • GRATE Y: 440
  • GRATE Z: 65
  • OPENING A: 900
  • OPENING B: 450
-

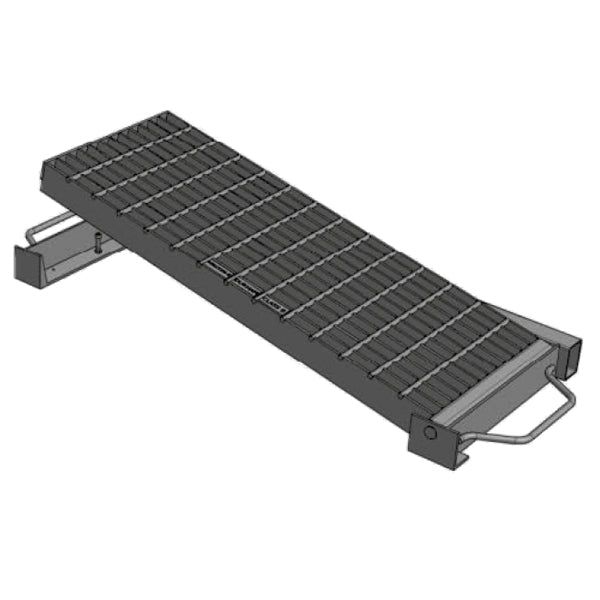

Galvanised Kerb Entry Grate & Frame MSLCOM-D
Product Specifications
  • FRAME C: 1060
  • FRAME D: 455
  • FRAME E: 75
  • GRATE X: 1000
  • GRATE Y: 380
  • GRATE Z: 65
  • OPENING A: 900
  • OPENING B: 400
-

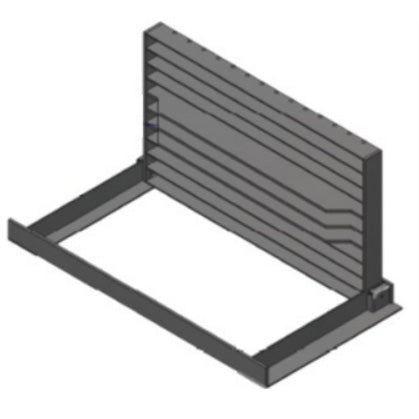

Galvanised Kerb Entry Grate & Frame QGG96D
Product Specifications
  • FRAME C: 1150
  • FRAME D: 610
  • FRAME E: 80
  • GRATE X: 990
  • GRATE Y: 575
  • GRATE Z: 75
  • OPENING A: 900
  • OPENING B: 600
-

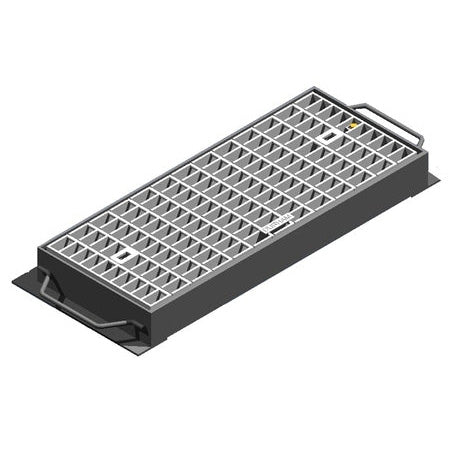

Galvanised Kerb Entry Grate & Frame RTASA3
Product Specifications
  • FRAME C: 1040
  • FRAME D: 630
  • FRAME E: 106
  • GRATE X: 915
  • GRATE Y: 515
  • GRATE Z: 100
  • OPENING A: 840
  • OPENING B: 430
-
Galvanised Kerb Entry Grate & Frame RTASAL
Product Specifications
  • FRAME C: 1040
  • FRAME D: 590
  • FRAME E: 106
  • GRATE X: 915
  • GRATE Y: 515
  • GRATE Z: 100
  • OPENING A: 840
  • OPENING B: 525
-
Galvanised Kerb Entry Grate & Frame RTASAS
Product Specifications
  • FRAME C: 1040
  • FRAME D: 435
  • FRAME E: 106
  • GRATE X: 915
  • GRATE Y: 360
  • GRATE Z: 100
  • OPENING A: 840
  • OPENING B: 374
-
