Storm Water - Drainage Grates

Galvanised Trench Grate & Frame MSTF4032
Product Specifications
  • FRAME C: 1000
  • FRAME D: 420
  • FRAME E: 40
  • GRATE X: 1000
  • GRATE Y: 400
  • GRATE Z: 32
  • OPENING A: 1000
  • OPENING B: 340
-
Galvanised Trench Grate & Frame MSTF4040
Product Specifications
  • FRAME C: 1000
  • FRAME D: 420
  • FRAME E: 45
  • GRATE X: 1000
  • GRATE Y: 400
  • GRATE Z: 40
  • OPENING A: 1000
  • OPENING B: 320
-
Galvanised Trench Grate & Frame MSTF4050
Product Specifications
  • FRAME C: 1000
  • FRAME D: 420
  • FRAME E: 55
  • GRATE X: 1000
  • GRATE Y: 400
  • GRATE Z: 50
  • OPENING A: 1000
  • OPENING B: 300
-
Round Drain Grate & Frame - Class B CG60RB
Product Specifications
  • CLASS LOAD: B
  • COVER DEPTH (Z): 45
  • COVER SIZE (X): 675
  • FRAME DEPTH (E): 55
  • FRAME SIZE (C): 810
  • MARKING TYPE: STORMWATER
  • OPENING (A): 610
  • SURFACE TYPE: GRATE
-

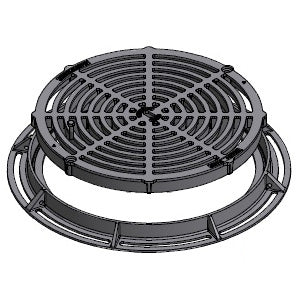

Round Drain Grate & Frame - Class D CG60RD
Product Specifications
  • CLASS LOAD: D
  • COVER DEPTH (Z): 45
  • COVER SIZE (X): 675
  • FRAME DEPTH (E): 55
  • FRAME SIZE (C): 810
  • MARKING TYPE: STORMWATER
  • OPENING (A): 610
  • SURFACE TYPE: GRATE
-
Round Ductile Iron Drain Grate CI100R
Product Specifications
  • Frame Depth: 17
  • FRAME SIZE: 115 diameter
  • Grate Depth: 10
  • GRATE SIZE: 100 diameter
  • OPENING SIZE: 80 diameter
-
Round Ductile Iron Drain Grate CI150R
Product Specifications
  • Frame Depth: 17
  • FRAME SIZE: 165 diameter
  • Grate Depth: 10
  • GRATE SIZE: 150 diameter
  • OPENING SIZE: 130 diameter
-
Round Ductile Iron Drain Grate CI175R
Product Specifications
  • Frame Depth: 17
  • FRAME SIZE: 190 diameter
  • Grate Depth: 10
  • GRATE SIZE: 175 diameter
  • OPENING SIZE: 155 diameter
-
Round Ductile Iron Drain Grate CI200R
Product Specifications
  • Frame Depth: 17
  • FRAME SIZE: 215 diameter
  • Grate Depth: 10
  • GRATE SIZE: 200 diameter
  • OPENING SIZE: 180 diameter
-
Round Ductile Iron Drain Grate CI230R
Product Specifications
  • Frame Depth: 17
  • FRAME SIZE: 245 diameter
  • Grate Depth: 10
  • GRATE SIZE: 230 diameter
  • OPENING SIZE: 210 diameter
-
Round Ductile Iron Drain Grate CI250R
Product Specifications
  • Frame Depth: 17
  • FRAME SIZE: 265 diameter
  • Grate Depth: 10
  • GRATE SIZE: 250 diameter
  • OPENING SIZE: 230 diameter
-
Round Ductile Iron Drain Grate CI300R
Product Specifications
  • Frame Depth: 17
  • FRAME SIZE: 315 diameter
  • Grate Depth: 10
  • GRATE SIZE: 300 diameter
  • OPENING SIZE: 280 diameter
-
