Storm Water - Drainage Grates

Concrete Surrounds for lids S96B+FAG96D
Product Specifications
  • CLASS: CLASS D
  • CLEAR OPENING (X): 900
  • CLEAR OPENING (Y): 600
  • LID TYPE: CAST GRATE
  • OVERALLLENGTH (A): 1200
  • OVERALL DEPTH (C): 200
  • OVERALL LENGTH (B): 900
-
Concrete Surrounds for lids S96B+MSC96EX
Product Specifications
  • CLASS: CLASS D
  • CLEAR OPENING (X): 900
  • CLEAR OPENING (Y): 600
  • LID TYPE: GAL GRATE
  • OVERALLLENGTH (A): 1200
  • OVERALL DEPTH (C): 200
  • OVERALL LENGTH (B): 900
-
Concrete Surrounds for lids S96B+MSC96HT
Product Specifications
  • CLASS: HEAVY
  • CLEAR OPENING (X): 900
  • CLEAR OPENING (Y): 600
  • LID TYPE: GAL GRATE
  • OVERALLLENGTH (A): 1200
  • OVERALL DEPTH (C): 200
  • OVERALL LENGTH (B): 900
-
Concrete Surrounds for lids S96B+MSC96LT
Product Specifications
  • CLASS: LIGHT
  • CLEAR OPENING (X): 900
  • CLEAR OPENING (Y): 600
  • LID TYPE: GAL GRATE
  • OVERALLLENGTH (A): 1200
  • OVERALL DEPTH (C): 200
  • OVERALL LENGTH (B): 900
-
Concrete Surrounds for lids S96B+MSC96MT
Product Specifications
  • CLASS: MEDIUM
  • CLEAR OPENING (X): 900
  • CLEAR OPENING (Y): 600
  • LID TYPE: GAL GRATE
  • OVERALLLENGTH (A): 1200
  • OVERALL DEPTH (C): 200
  • OVERALL LENGTH (B): 900
-
Concrete Surrounds for lids S99B+FAG99B
Product Specifications
  • CLASS: CLASS B
  • CLEAR OPENING (X): 900
  • CLEAR OPENING (Y): 900
  • LID TYPE: CAST GRATE
  • OVERALLLENGTH (A): 1200
  • OVERALL DEPTH (C): 200
  • OVERALL LENGTH (B): 1200
-
Concrete Surrounds for lids S99B+FAG99D
Product Specifications
  • CLASS: CLASS D
  • CLEAR OPENING (X): 900
  • CLEAR OPENING (Y): 900
  • LID TYPE: CAST GRATE
  • OVERALLLENGTH (A): 1200
  • OVERALL DEPTH (C): 200
  • OVERALL LENGTH (B): 1200
-
Concrete Surrounds for lids S99B+MSC99EX
Product Specifications
  • CLASS: CLASS D
  • CLEAR OPENING (X): 900
  • CLEAR OPENING (Y): 900
  • LID TYPE: GAL GRATE
  • OVERALLLENGTH (A): 1200
  • OVERALL DEPTH (C): 200
  • OVERALL LENGTH (B): 1200
-
Concrete Surrounds for lids S99B+MSC99HT
Product Specifications
  • CLASS: HEAVY
  • CLEAR OPENING (X): 900
  • CLEAR OPENING (Y): 900
  • LID TYPE: GAL GRATE
  • OVERALLLENGTH (A): 1200
  • OVERALL DEPTH (C): 200
  • OVERALL LENGTH (B): 1200
-
Concrete Surrounds for lids S99B+MSC99LT
Product Specifications
  • CLASS: LIGHT
  • CLEAR OPENING (X): 900
  • CLEAR OPENING (Y): 900
  • LID TYPE: GAL GRATE
  • OVERALLLENGTH (A): 1200
  • OVERALL DEPTH (C): 200
  • OVERALL LENGTH (B): 1200
-

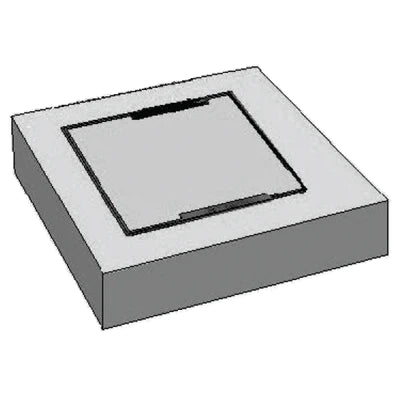

Concrete Surrounds for lids S99B+MSC99MT
Product Specifications
  • CLASS: MEDIUM
  • CLEAR OPENING (X): 900
  • CLEAR OPENING (Y): 900
  • LID TYPE: GAL GRATE
  • OVERALLLENGTH (A): 1200
  • OVERALL DEPTH (C): 200
  • OVERALL LENGTH (B): 1200
-
Concrete Surrounds for RMS / TfNSW CLSE1
Product Specifications
  • CLEAR (X) OPENING: 1445
  • CLEAR (Y) OPENING: 680
  • DISH (D) INVERT: 80
  • OVERALL DEPTH (C): 300
  • OVERALL LENGTH (B): 2300
  • OVERALL WIDTH (A): 1740
-
Concrete Surrounds for RMS / TfNSW CLSF1
Product Specifications
  • CLEAR (X) OPENING: 1445
  • CLEAR (Y) OPENING: 680
  • DISH (D) INVERT: 80
  • OVERALL DEPTH (C): 300
  • OVERALL LENGTH (B): 2300
  • OVERALL WIDTH (A): 1740
-
Concrete Surrounds for RMS / TfNSW SMGDG+RTAMGDG
Product Specifications
  • CLEAR (X) OPENING: 1445
  • CLEAR (Y) OPENING: 680
  • DISH (D) INVERT: 80
  • OVERALL DEPTH (C): 300
  • OVERALL LENGTH (B): 2300
  • OVERALL WIDTH (A): 1740
-

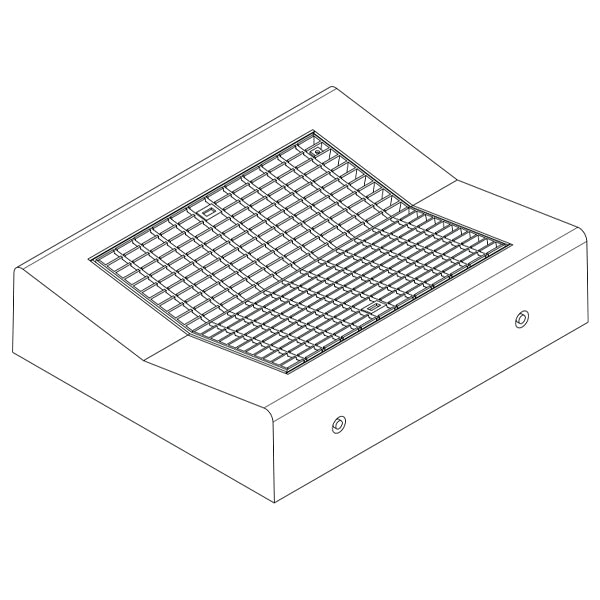

Concrete Surrounds for RMS / TfNSW SMGSG+RTAMGSG
Product Specifications
  • CLEAR (X) OPENING: 645
  • CLEAR (Y) OPENING: 680
  • DISH (D) INVERT: 80
  • OVERALL DEPTH (C): 300
  • OVERALL LENGTH (B): 1610
  • OVERALL WIDTH (A): 1740
-
Concrete Surrounds for RMS / TfNSW SSB1+RTASB1
Product Specifications
  • CLEAR (X) OPENING: 680
  • CLEAR (Y) OPENING: 745
  • DISH (D) INVERT: 60
  • OVERALL DEPTH (C): 300
  • OVERALL LENGTH (B): 1000
  • OVERALL WIDTH (A): 1200
-
Concrete Surrounds for RMS / TfNSW SSK1+RTASK1
Product Specifications
  • CLEAR (X) OPENING: 680
  • CLEAR (Y) OPENING: 875
  • DISH (D) INVERT: 120
  • OVERALL DEPTH (C): 300
  • OVERALL LENGTH (B): 1000
  • OVERALL WIDTH (A): 1200
-
Concrete Surrounds for RMS / TfNSW SSK2+RTASK2
Product Specifications
  • CLEAR (X) OPENING: 1515
  • CLEAR (Y) OPENING: 875
  • DISH (D) INVERT: 120
  • OVERALL DEPTH (C): 300
  • OVERALL LENGTH (B): 1000
  • OVERALL WIDTH (A): 2000
-
Concrete Surrounds for RMS / TfNSW SSO1+RTASO1
Product Specifications
  • CLEAR (X) OPENING: 680
  • CLEAR (Y) OPENING: 745
  • DISH (D) INVERT: 100
  • OVERALL DEPTH (C): 300
  • OVERALL LENGTH (B): 1000
  • OVERALL WIDTH (A): 1200
-
Concrete Surrounds for RMS / TfNSW SSO2+RTASO2
Product Specifications
  • CLEAR (X) OPENING: 1515
  • CLEAR (Y) OPENING: 745
  • DISH (D) INVERT: 100
  • OVERALL DEPTH (C): 300
  • OVERALL LENGTH (B): 1000
  • OVERALL WIDTH (A): 2000
-
Ductile Bike Safe Grate & Frame - Class B FAG44B
Product Specifications
  • FRAME DEPTH (E): 45
  • FRAME LENGTH (C): 585
  • FRAME WIDTH (D): 540
  • GRATE DEPTH (Z): 38
  • GRATE LENGTH (X): 505
  • GRATE WIDTH (Y): 500
  • OPENING LENGTH (A): 450
  • OPENING WIDTH (B): 450
-
Ductile Bike Safe Grate & Frame - Class B FAG66B
Product Specifications
  • FRAME DEPTH (E): 45
  • FRAME LENGTH (C): 740
  • FRAME WIDTH (D): 690
  • GRATE DEPTH (Z): 38
  • GRATE LENGTH (X): 660
  • GRATE WIDTH (Y): 650
  • OPENING LENGTH (A): 600
  • OPENING WIDTH (B): 600
-
Ductile Bike Safe Grate & Frame - Class B FAG96B
Product Specifications
  • FRAME DEPTH (E): 45
  • FRAME LENGTH (C): 1040
  • FRAME WIDTH (D): 690
  • GRATE DEPTH (Z): 38
  • GRATE LENGTH (X): 960
  • GRATE WIDTH (Y): 650
  • OPENING LENGTH (A): 900
  • OPENING WIDTH (B): 600
-
Ductile Bike Safe Grate & Frame - Class B FAG99B
Product Specifications
  • FRAME DEPTH (E): 45
  • FRAME LENGTH (C): 1040
  • FRAME WIDTH (D): 990
  • GRATE DEPTH (Z): 38
  • GRATE LENGTH (X): 960
  • GRATE WIDTH (Y): 950
  • OPENING LENGTH (A): 900
  • OPENING WIDTH (B): 900
-

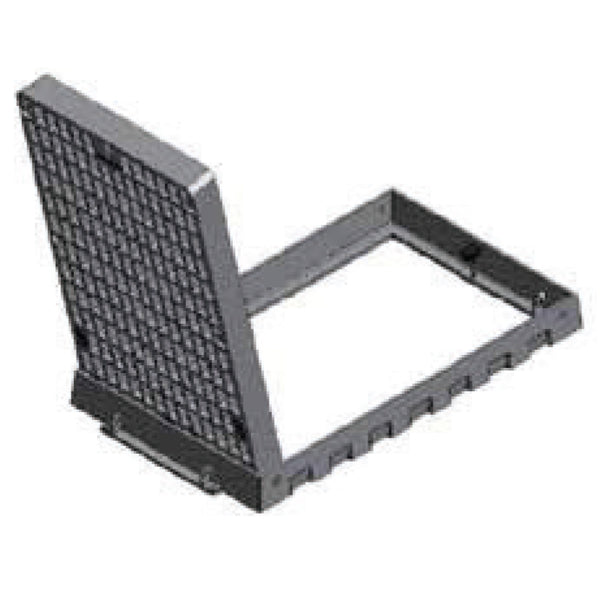

Ductile Bike Safe Grate & Frame - Class D DILCOM-D
Product Specifications
  • FRAME DEPTH (E): 75
  • FRAME LENGTH (C): 1045
  • FRAME WIDTH (D): 450
  • GRATE DEPTH (Z): 65
  • GRATE LENGTH (X): 990
  • GRATE WIDTH (Y): 405
  • OPENING LENGTH (A): 900
  • OPENING WIDTH (B): 700
-

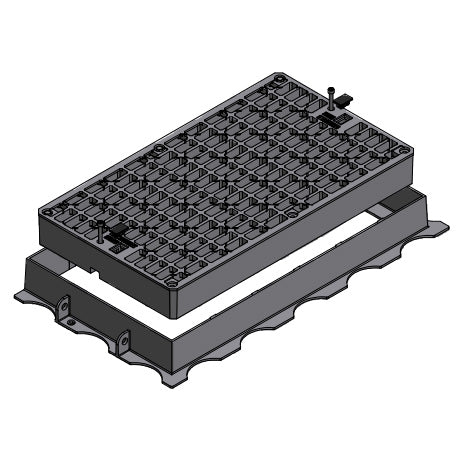

Ductile Bike Safe Grate & Frame - Class D DISAL
Product Specifications
  • FRAME DEPTH (E): 105
  • FRAME LENGTH (C): 1040
  • FRAME WIDTH (D): 595
  • GRATE DEPTH (Z): 100
  • GRATE LENGTH (X): 915
  • GRATE WIDTH (Y): 520
  • OPENING LENGTH (A): 840
  • OPENING WIDTH (B): 525
-
Ductile Bike Safe Grate & Frame - Class D DISAS
Product Specifications
  • FRAME DEPTH (E): 105
  • FRAME LENGTH (C): 1040
  • FRAME WIDTH (D): 440
  • GRATE DEPTH (Z): 100
  • GRATE LENGTH (X): 915
  • GRATE WIDTH (Y): 365
  • OPENING LENGTH (A): 840
  • OPENING WIDTH (B): 375
-
Ductile Bike Safe Grate & Frame - Class D DS18
Product Specifications
  • FRAME DEPTH (E): 90
  • FRAME LENGTH (C): 1010
  • FRAME WIDTH (D): 515
  • GRATE DEPTH (Z): 75
  • GRATE LENGTH (X): 915
  • GRATE WIDTH (Y): 465
  • OPENING LENGTH (A): 860
  • OPENING WIDTH (B): 405
-
Ductile Bike Safe Grate & Frame - Class D DS22
Product Specifications
  • FRAME DEPTH (E): 95
  • FRAME LENGTH (C): 1030
  • FRAME WIDTH (D): 575
  • GRATE DEPTH (Z): 75
  • GRATE LENGTH (X): 930
  • GRATE WIDTH (Y): 535
  • OPENING LENGTH (A): 875
  • OPENING WIDTH (B): 475
-
Ductile Bike Safe Grate & Frame - Class D FAG44D
Product Specifications
  • FRAME DEPTH (E): 100
  • FRAME LENGTH (C): 630
  • FRAME WIDTH (D): 610
  • GRATE DEPTH (Z): 72
  • GRATE LENGTH (X): 545
  • GRATE WIDTH (Y): 530
  • OPENING LENGTH (A): 450
  • OPENING WIDTH (B): 450
-
Ductile Bike Safe Grate & Frame - Class D FAG66D
Product Specifications
  • FRAME DEPTH (E): 100
  • FRAME LENGTH (C): 780
  • FRAME WIDTH (D): 760
  • GRATE DEPTH (Z): 72
  • GRATE LENGTH (X): 690
  • GRATE WIDTH (Y): 680
  • OPENING LENGTH (A): 600
  • OPENING WIDTH (B): 600
-
Ductile Bike Safe Grate & Frame - Class D FAG96D
Product Specifications
  • FRAME DEPTH (E): 100
  • FRAME LENGTH (C): 1080
  • FRAME WIDTH (D): 760
  • GRATE DEPTH (Z): 72
  • GRATE LENGTH (X): 990
  • GRATE WIDTH (Y): 680
  • OPENING LENGTH (A): 900
  • OPENING WIDTH (B): 600
-
Ductile Bike Safe Grate & Frame - Class D FAG99D
Product Specifications
  • FRAME DEPTH (E): 100
  • FRAME LENGTH (C): 1080
  • FRAME WIDTH (D): 1060
  • GRATE DEPTH (Z): 72
  • GRATE LENGTH (X): 990
  • GRATE WIDTH (Y): 985
  • OPENING LENGTH (A): 900
  • OPENING WIDTH (B): 900
-
Ductile Bike Safe Grate & Frame - Class G FAG44G
Product Specifications
  • FRAME DEPTH (E): 150
  • FRAME LENGTH (C): 630
  • FRAME WIDTH (D): 630
  • GRATE DEPTH (Z): 90
  • GRATE LENGTH (X): 540
  • GRATE WIDTH (Y): 540
  • OPENING LENGTH (A): 460
  • OPENING WIDTH (B): 460
-
Ductile Bike Safe Grate & Frame - Class G FAG66G
Product Specifications
  • FRAME DEPTH (E): 150
  • FRAME LENGTH (C): 790
  • FRAME WIDTH (D): 780
  • GRATE DEPTH (Z): 90
  • GRATE LENGTH (X): 700
  • GRATE WIDTH (Y): 690
  • OPENING LENGTH (A): 610
  • OPENING WIDTH (B): 610
-
Ductile Bike Safe Grate & Frame - Class G FAG96G
Product Specifications
  • FRAME DEPTH (E): 150
  • FRAME LENGTH (C): 1085
  • FRAME WIDTH (D): 780
  • GRATE DEPTH (Z): 90
  • GRATE LENGTH (X): 995
  • GRATE WIDTH (Y): 690
  • OPENING LENGTH (A): 910
  • OPENING WIDTH (B): 610
-
Ductile Bike Safe Grate & Frame - Class G FAG99G
Product Specifications
  • FRAME DEPTH (E): 150
  • FRAME LENGTH (C): 1085
  • FRAME WIDTH (D): 1085
  • GRATE DEPTH (Z): 90
  • GRATE LENGTH (X): 995
  • GRATE WIDTH (Y): 995
  • OPENING LENGTH (A): 910
  • OPENING WIDTH (B): 910
-

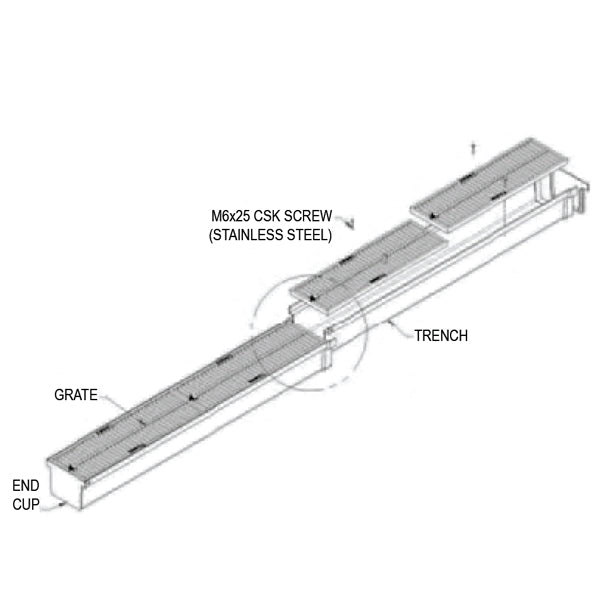

Ductile Bike Safe Trench Grate & Channel - Class B DIGC15B
Product Specifications
  • FRAME (C): 1235
  • FRAME (D): 210
  • FRAME (E): 140
  • GRATE (X): 1200
  • GRATE (Y): 200
  • GRATE (Z): 20
  • OPENING (A): 1200
  • OPENING (B): 150
-
Ductile Bike Safe Trench Grate & Frame - Class D UN15D
Product Specifications
  • FRAME (C): 610
  • FRAME (D): 285
  • FRAME (E): 40
  • GRATE (X): 610
  • GRATE (Y): 200
  • GRATE (Z): 25
  • OPENING (A): 610
  • OPENING (B): 150
-

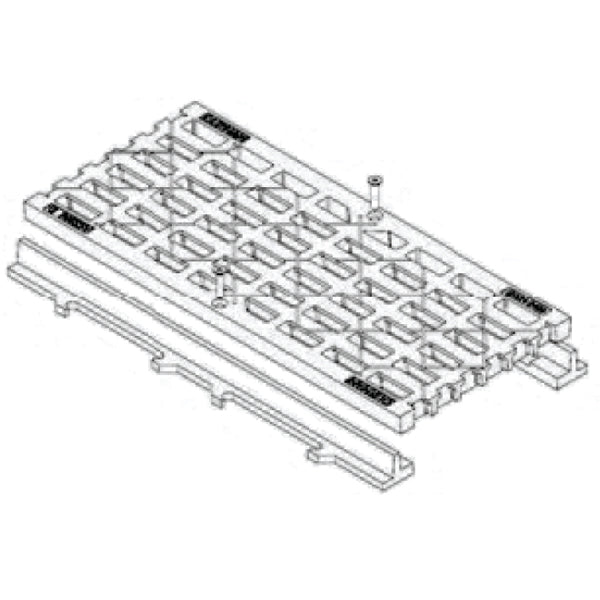

Ductile Bike Safe Trench Grate & Frame - Class D UNI23D
Product Specifications
  • FRAME (C): 610
  • FRAME (D): 365
  • FRAME (E): 40
  • GRATE (X): 610
  • GRATE (Y): 280
  • GRATE (Z): 25
  • OPENING (A): 610
  • OPENING (B): 230
-
Ductile Bike Safe Trench Grate & Frame - Class D UNI30D
Product Specifications
  • FRAME (C): 610
  • FRAME (D): 435
  • FRAME (E): 40
  • GRATE (X): 610
  • GRATE (Y): 350
  • GRATE (Z): 25
  • OPENING (A): 610
  • OPENING (B): 300
-
Ductile Bike Safe Trench Grate & Frame - Class D UNI45D
Product Specifications
  • FRAME (C): 610
  • FRAME (D): 585
  • FRAME (E): 40
  • GRATE (X): 610
  • GRATE (Y): 500
  • GRATE (Z): 25
  • OPENING (A): 610
  • OPENING (B): 450
-
Ductile Bike Safe Trench Grate & Frame - Class G UN15G
Product Specifications
  • FRAME (C): 610
  • FRAME (D): 285
  • FRAME (E): 100
  • GRATE (X): 610
  • GRATE (Y): 200
  • GRATE (Z): 75
  • OPENING (A): 610
  • OPENING (B): 150
-
Ductile Bike Safe Trench Grate & Frame - Class G UNI23G
Product Specifications
  • FRAME (C): 610
  • FRAME (D): 365
  • FRAME (E): 100
  • GRATE (X): 610
  • GRATE (Y): 280
  • GRATE (Z): 75
  • OPENING (A): 610
  • OPENING (B): 230
-
Ductile Bike Safe Trench Grate & Frame - Class G UNI30G
Product Specifications
  • FRAME (C): 610
  • FRAME (D): 435
  • FRAME (E): 100
  • GRATE (X): 610
  • GRATE (Y): 350
  • GRATE (Z): 75
  • OPENING (A): 610
  • OPENING (B): 300
-
Ductile Bike Safe Trench Grate & Frame - Class G UNI45G
Product Specifications
  • FRAME (C): 610
  • FRAME (D): 585
  • FRAME (E): 100
  • GRATE (X): 610
  • GRATE (Y): 500
  • GRATE (Z): 75
  • OPENING (A): 610
  • OPENING (B): 450
-
Ductile Pedestrian Guard Grate & Channel - Class D DRAIN100
Product Specifications
  • CHANNEL (C): 1000
  • CHANNEL (D): 140
  • CHANNE (E): 150
  • GRATE (X): 2@500
  • GRATE (Y): 130
  • GRATE (Z): 20
  • OPENING (A): 1000
  • OPENING (B): 100
-

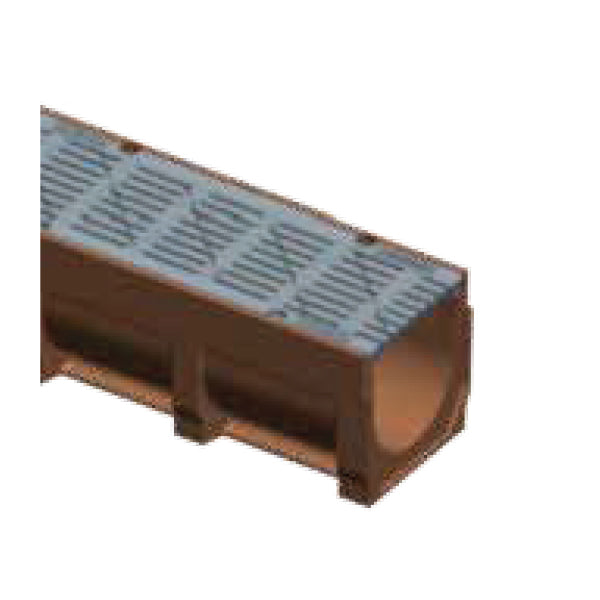

Ductile Pedestrian Guard Grate & Channel - Class D DRAIN150
Product Specifications
  • CHANNEL (C): 1000
  • CHANNEL (D): 190
  • CHANNE (E): 180
  • GRATE (X): 2@500
  • GRATE (Y): 180
  • GRATE (Z): 20
  • OPENING (A): 1000
  • OPENING (B): 150
-

Search
